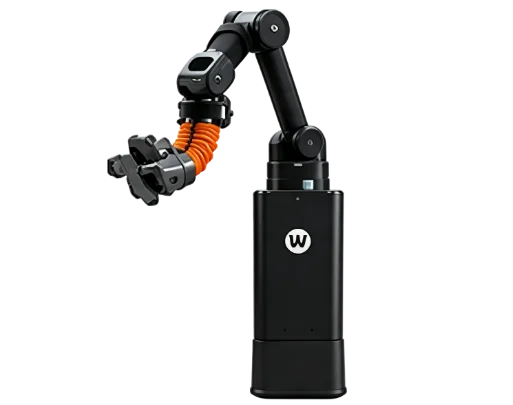

Pliabot® Manipulator
Air and ground arms, swappable tooling, 15 kg payload.
- 15kg
PAYLOAD
- 360°
MOTION
- −40°C
MINIMUM
- 1min
TO INSTALL
- Air and ground arms, swappable tooling, 15 kg payload.
WHY IT WORKS
Four Things a Rigid
Cleaning Head Cannot Do.
-
01
It touches the surface, on purpose.
The Pliabot® joint lets the squeegee sit flat against the glass and follow it. Contact force stays inside a set band, so the pane is cleaned rather than blasted — and the airframe never feels the push.
-
02
Recoil cancelled at the joint.
An 8 MPa jet pushes back hard. SlimEngine™ absorbs that reaction in the muscle instead of passing it to the flight controller, so the drone holds station.
-
03
One-step nozzle change.
Fan, pencil or brush head, swapped on the ground in seconds. The controller recognises the tool and loads its motion envelope.
-
04
Built for all-weather duty.
Rated −40 °C to +60 °C and IP55, operational up to 10 m/s wind. The muscle envelope is a 400-hour service part, swapped in under ten minutes.
SPECIFICATIONS
Full Parameters.
- Performance
- Mechanical
- Environment
- Compatibility
- To Install
- Cleaning rate
7.5 m²/min
- Nozzle projection angle
+10° to −50°
- Maximum working
pressure8 MPa (80 bar)
- Fan jet width
40°
- Water flow
11 L/min
- Vertical adjustment
60°
- Maximum flight height
50 m (15 m under EU STS-01)
- Set-up time
1 minute
- Water squeegee
40° bionic Pliabot® squeegee
- Vertical adjustment
60°
- Nozzle projection angle
+10° to −50°
- Nozzle set
5 pieces: fan, pencil, wide, low-flow, rinse
- Tether hose
100 m, 1/4" quick connector
- Nozzle change
One step, on the ground
- Recoil
Absorbed in the muscle by SlimEngine™
- Set-up time
1 minute
- Operating temperature
−40 °C to +60 °C
- Protection rating
IP55
- Wind resistance
Operational up to 10 m/s
- Maximum flight height
50 m (15 m under EU STS-01)
- Transport case
IP67, foam cut to shape
- Muscle envelope
400 h service part
- Airframe
DJI M350
- Control
Standard controller
- Water supply
Tethered, continuous feed
- Tool recognition
Fan, pencil or brush head
- Pump unit (optional)
125 bar, petrol or three-phase
- Hose reel (optional)
150 m, for towers above 50 m
- Airframe mount
Quick-release plate on the DJI M350
- Tools required
None. One latch, no fasteners
- First installation
Under 3 minutes, on the ground
- Water connection
1/4" quick connector on the tether
- Power
Drawn from the airframe, no extra pack
- Crew
One operator
- Transport
Ships in the IP67 case, foam cut to shape
- Site requirement
Level pad and a water feed within the hose length
Industries We Serve
IN THE BOX
Basic Kit.
Shipped with every AP3-S1. Tap an item for its datasheet.
-
Bionic squeegee head
40° fan, standard fit
-
Nozzle set, 5 pieces
Fan, pencil, wide, low-flow, rinse
-
100 m tether hose
1/4" quick connector
-
Transport case
IP67, foam cut to shape
Optional Accessories.
SEE IT FLY
Set-up to First Pass
Itaque tum Scaevola cum in eam ipsam mentionem incidisset, exposuit nobis sermonem Laeli de amicitia habitum ab illo secum et cum altero genero.
DOCUMENTS
Take It With You.
VIDEO LIBRARY
Short Answers, Filmed On Site.
-
Unpacking and first set-up
From case to first flight, with the pump and tether laid out correctly.
-
Changing a nozzle mid-job
Which head for glass, stone, coated panel and frames.
-
Replacing a muscle envelope
The 400-hour service part, swapped in under ten minutes.
