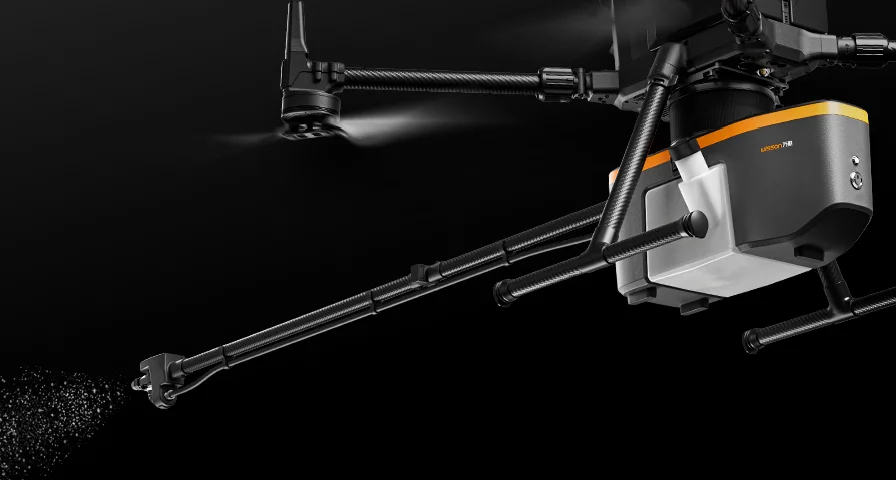

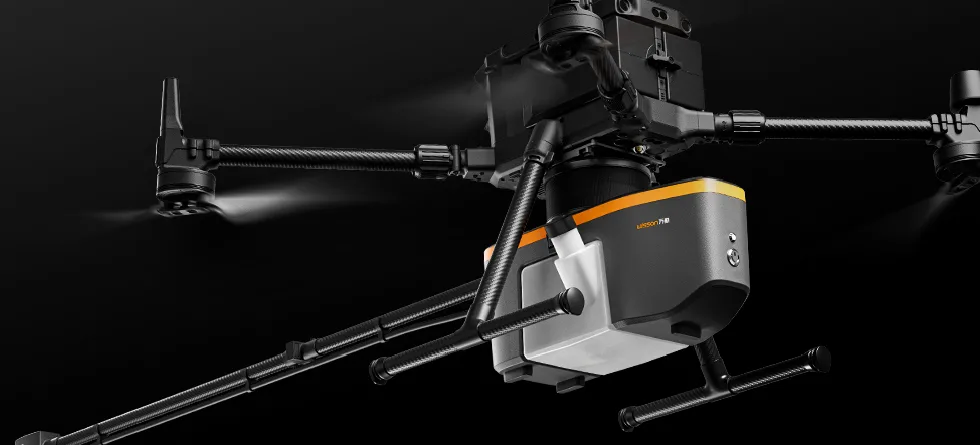

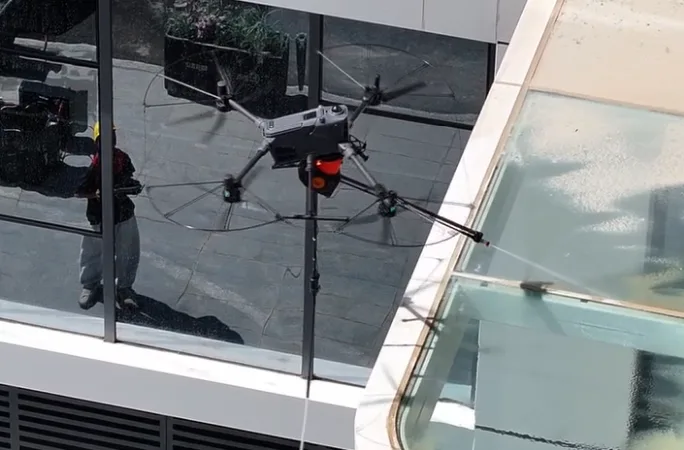

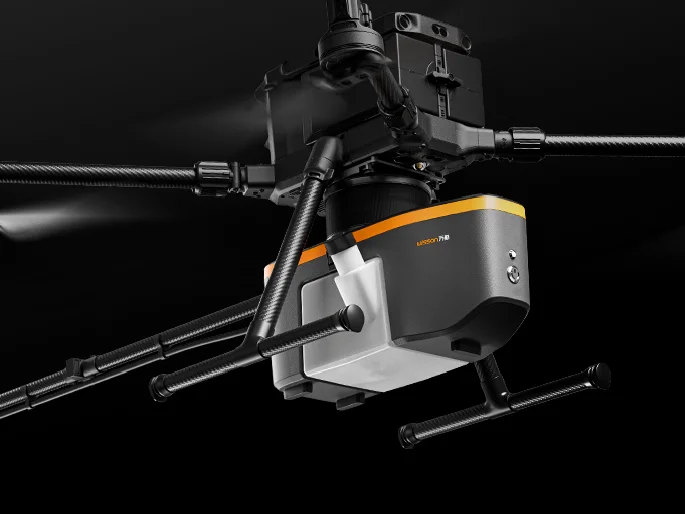

Tethered cleaning system paired with DJI M400 for high-altitude cleaning.
CLEANING RATE
FLIGHT HEIGHT
AIRBORNE WEIGHT
TO INSTALL

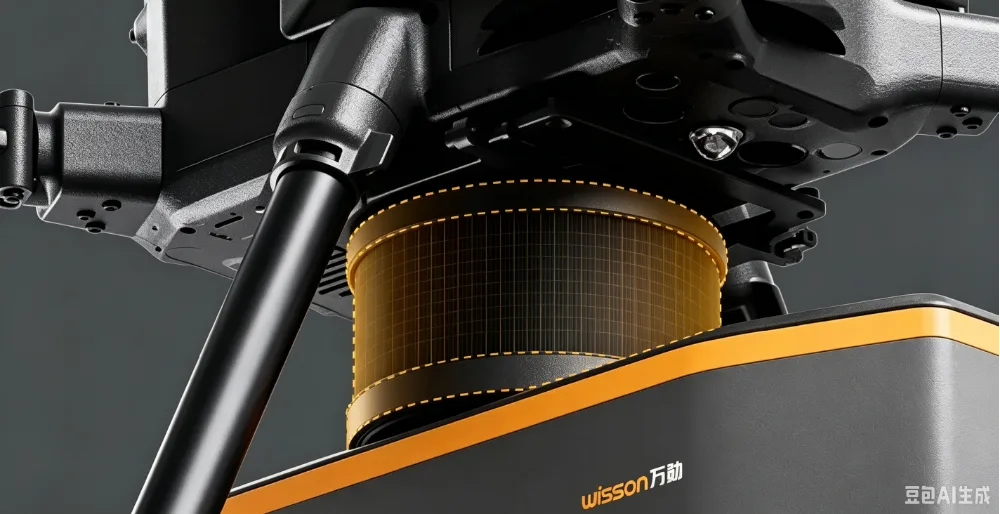

The Pliabot® joint lets the squeegee sit flat against the glass and follow it. Contact force stays inside a set band, so the pane is cleaned rather than blasted — and the airframe never feels the push.

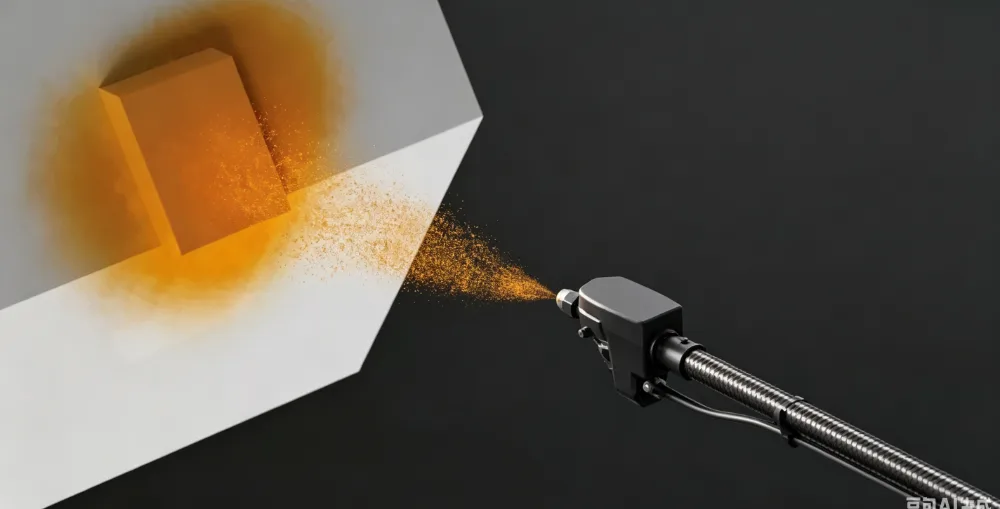

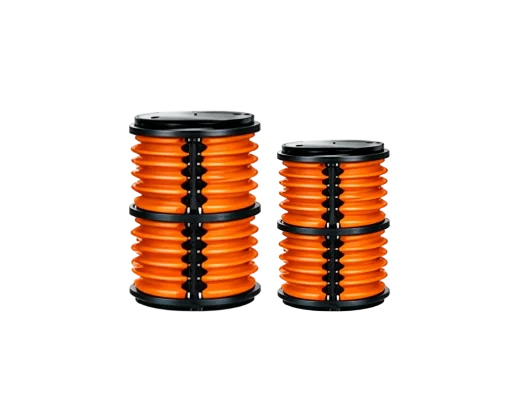

An 8 MPa jet pushes back hard. SlimEngine™ absorbs that reaction in the muscle instead of passing it to the flight controller, so the drone holds station.

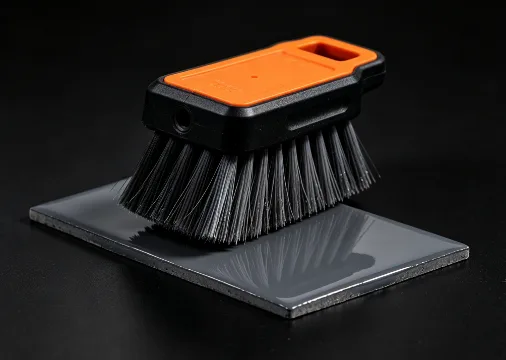

Fan, pencil or brush head, swapped on the ground in seconds. The controller recognises the tool and loads its motion envelope.
Rated −40 °C to +60 °C and IP55, operational up to 10 m/s wind. The muscle envelope is a 400-hour service part, swapped in under ten minutes.
7.5 m²/min

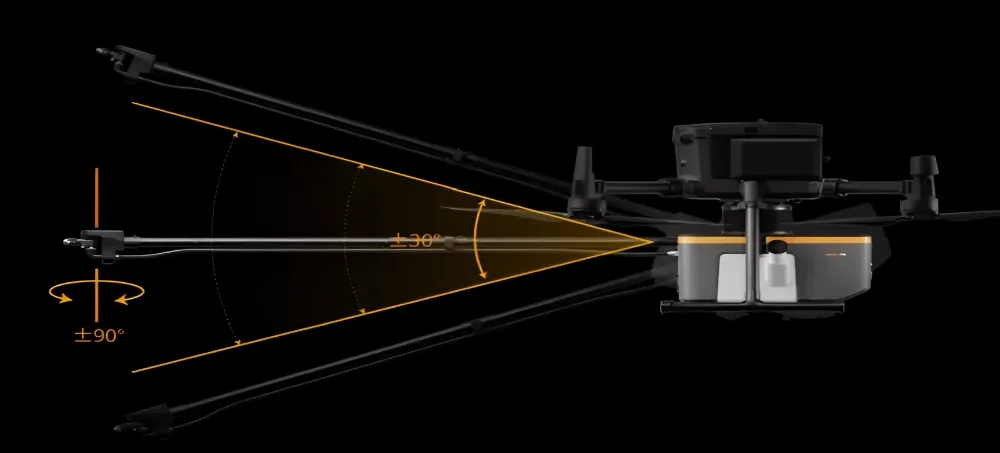

+10° to −50°
8 MPa (80 bar)
40°
11 L/min
60°
50 m (15 m under EU STS-01)
1 minute

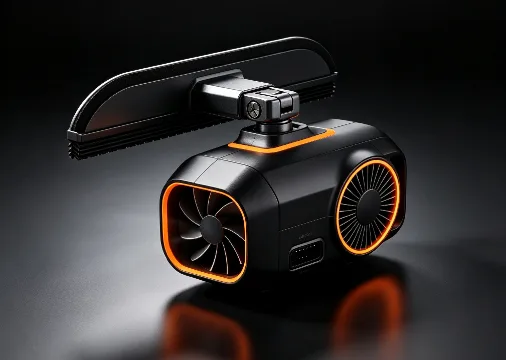

40° bionic Pliabot® squeegee
60°
+10° to −50°

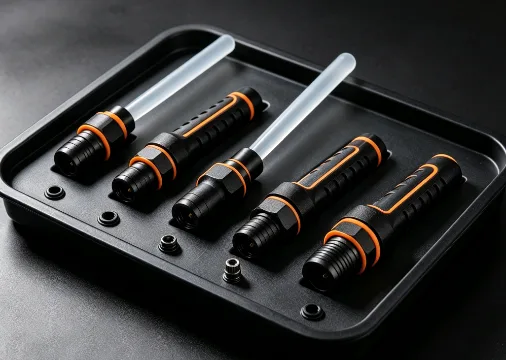

5 pieces: fan, pencil, wide, low-flow, rinse

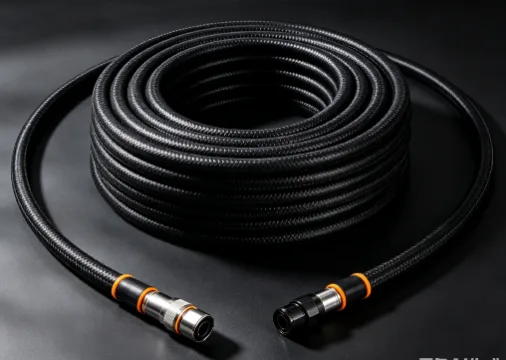

100 m, 1/4" quick connector
One step, on the ground
Absorbed in the muscle by SlimEngine™
1 minute
−40 °C to +60 °C
IP55
Operational up to 10 m/s
50 m (15 m under EU STS-01)
IP67, foam cut to shape
400 h service part
DJI M350
Standard controller
Tethered, continuous feed
Fan, pencil or brush head

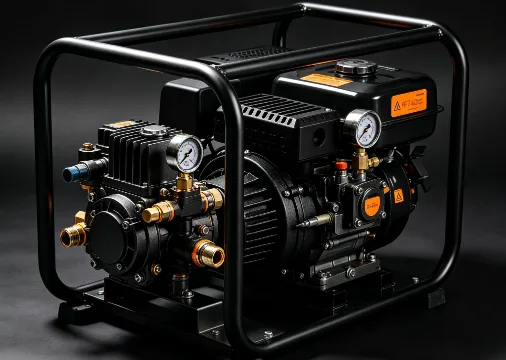

125 bar, petrol or three-phase

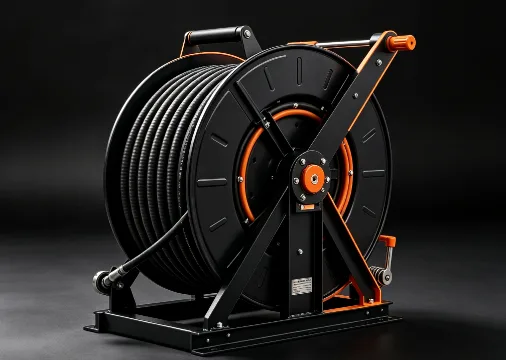

150 m, for towers above 50 m
Quick-release plate on the DJI M350
None. One latch, no fasteners
Under 3 minutes, on the ground
1/4" quick connector on the tether
Drawn from the airframe, no extra pack
One operator

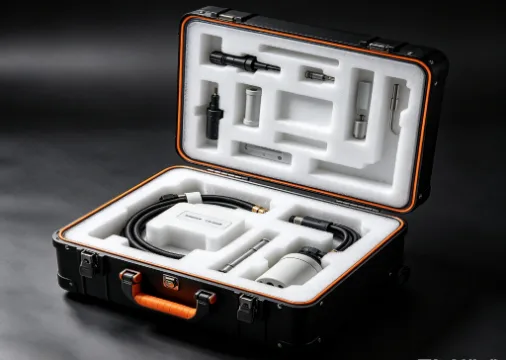

Ships in the IP67 case, foam cut to shape
Level pad and a water feed within the hose length
Shipped with every AP3-S1. Tap an item for its datasheet.
40° fan, standard fit
Fan, pencil, wide, low-flow, rinse
1/4" quick connector
IP67, foam cut to shape
Itaque tum Scaevola cum in eam ipsam mentionem incidisset, exposuit nobis sermonem Laeli de amicitia habitum ab illo secum et cum altero genero.

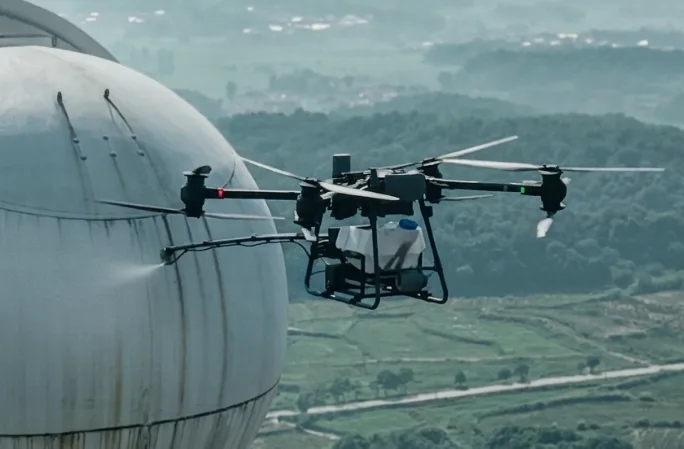

From case to first flight, with the pump and tether laid out correctly.
Which head for glass, stone, coated panel and frames.

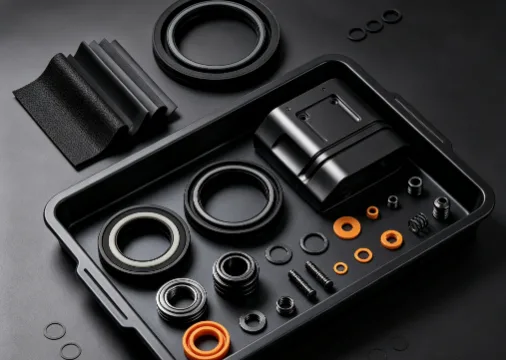

The 400-hour service part, swapped in under ten minutes.
